2TPD Plantain/Banana Flour Making Machine

  • Raw material:Stainless Steel
  • Capacity:1T/D,5T/D,10T/D,20T/D ETC
  • Usage:2TPD Plantain Flour Making
  • Port:QINGDAO ,SHANGHAI
  • Delivery time:30 DAYS
  • After-sales service:FREE INSTRUCTION

We're here to help: Easy ways to get the answers you need.

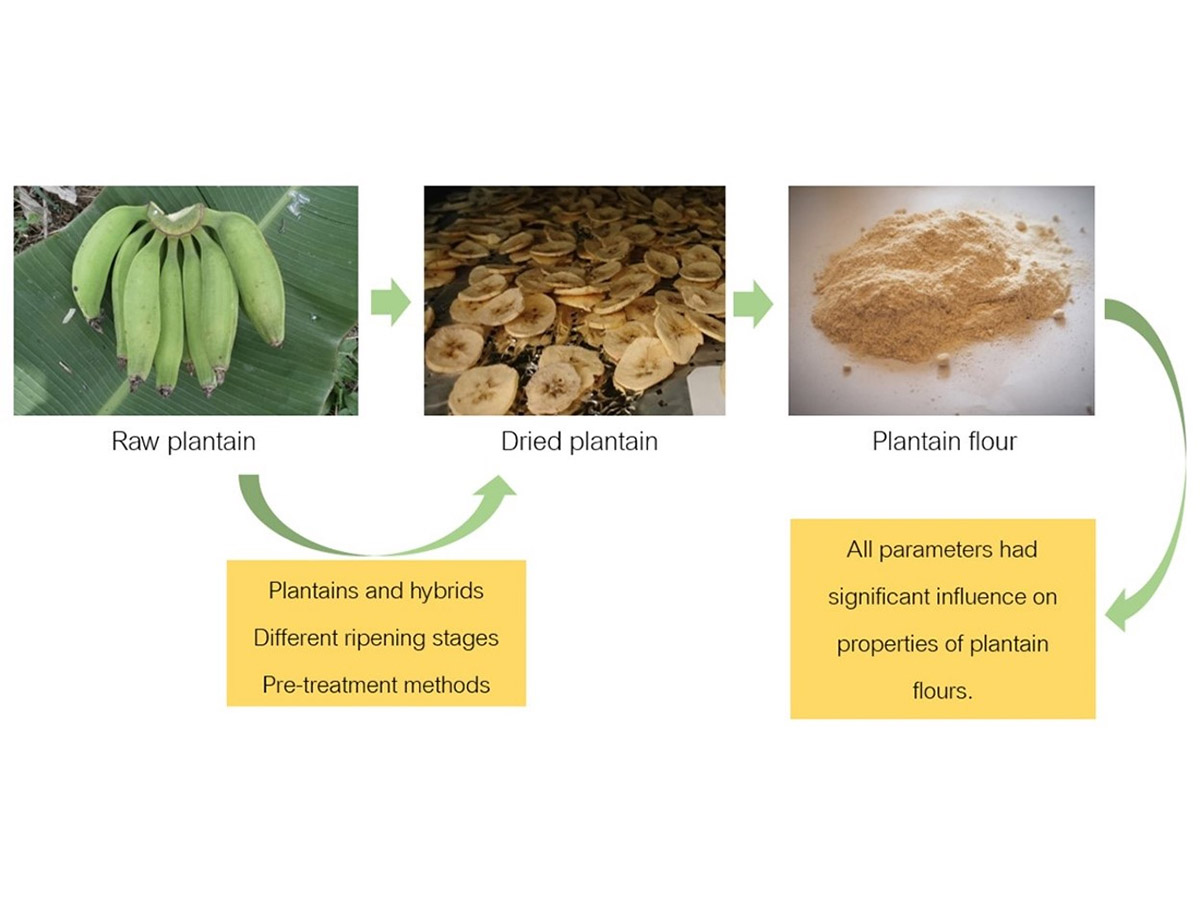

Process Flow


1. Plantain peeling: The first step of the plantain flour mill processing line is to peel for the plantain. We can use

the single inlet plantain peeling machine to achieve this step. The final plantain is clean and complete, without

damaging as well as. Besides, the peeling machine is suitable for any size. The camber is separated with the plantain peel.

2. Plantain slicing: After peeling the plantain, the next stage is to slice. Our plantain slicing machine can cut the frensh

plantains into slices successfully.

3. Plantain drying: About the plantain drying, we can use industrial plantain deyer to drying a short time in a oven or other

drying machine.

4. Plantain mill: After plantain drying, it is time to mill the dryed plantain slice, then get plantain flour.

5. Plantain plour sieve: We use the sieve to get high quality and refined flour.

6. Plantain packaging: When we finish all above stage, then it is time to package the plantain flour and is ready to sell.

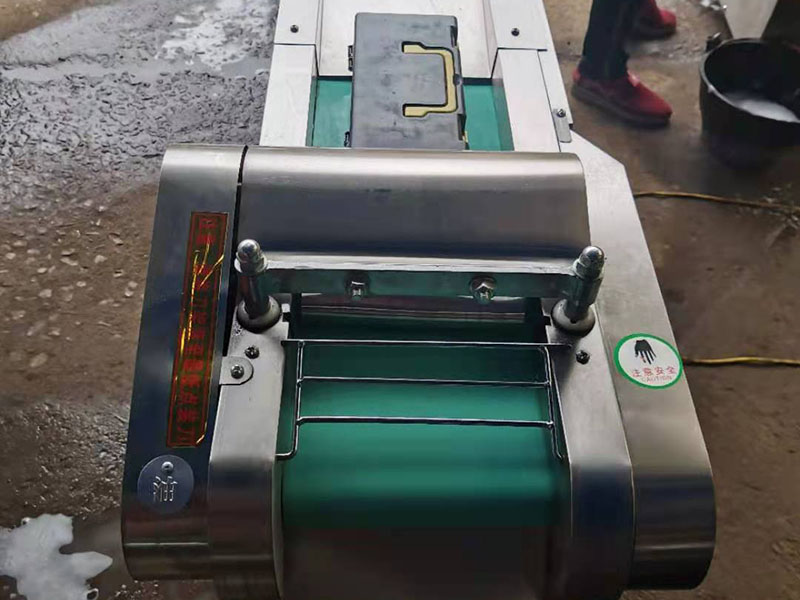

1. Banana slicing machine

Model

BZ-600

Voltage

220/380v

Power

1.5kw

Dimensions

700*700*900mm

Weight

160kg

Capacity

500kg/h





Slicing machine is suitable for dehydrated vegetables, frozen vegetables processing and food processing all kinds of pickles industry, root and stem vegetables cut into flake, once formed, edge smooth, forming rate is high, the blade thickness is adjustable, favored by foreign trade export unit. This machine is of advanced design, easy operation, low energy consumption, high efficiency, the aluminum magnesium alloy and stainless steel materials, corrosion protection, and beautiful, conform to the hygiene standards. It is mainly used for potato, lotus root, Chinese yam, carrot, onion slices.

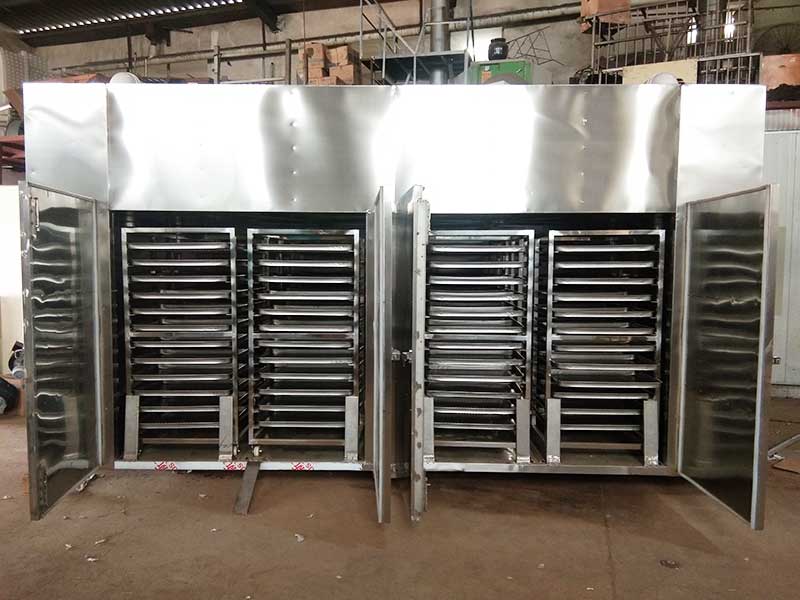

2.Banana chips drying machine

Model

BZ-4

Drying capacity

800kg/time

Dimension

3200*1800*2300mm

Trolley size

650*450*1700mm

Trays size

600*400mm

Fans

0.75Kw*4

Weight

1200kg

Steam pressure

5kg




The principle of heat radiation drying (baking) materials, the wind through the cycle of hot air through the material layer to reach the hot air and material evenly heated, effectively guarantee the drying (baking) material quality, color and taste.



3.Crushing machine

Model

BZ-370

Dimensions

1160*910*1030mm

Speed

3900 RPM

Rotor diameter

370mm

Power

7.5~11kw

Weight

400Kg

Capacity

70-400Kg/h

Fineness

10-120 mesh


flour sifter.jpg


1. Simple structure, crushing cavity convenient installation and easy to clean.
2. Stable running, low noise, small vibration.
3. The operation is simple, replace the screen can control the size of the particle size.





5.Vacuum packing machine

Model

UDSZK-400

Voltage

380v/50Hz

Power

1.7kw

Vacuum volume

500*450*40mm

Sealing length

400*10mm

Packing speed

2-8PCS/min

Weight

200kg

Dimension

990*630*890mm



package machine.png


This series of vacuum packaging machine has the functions of vacuuming, sealing and printing in one time. It is suitable for vacuum packaging of food, medicine, aquatic products, chemical raw materials, electronic components and other products; it can prevent oxidation and mildew of products, anti-corrosion and moisture proof, preserve quality and keep fresh, and extend product storage period.

Details

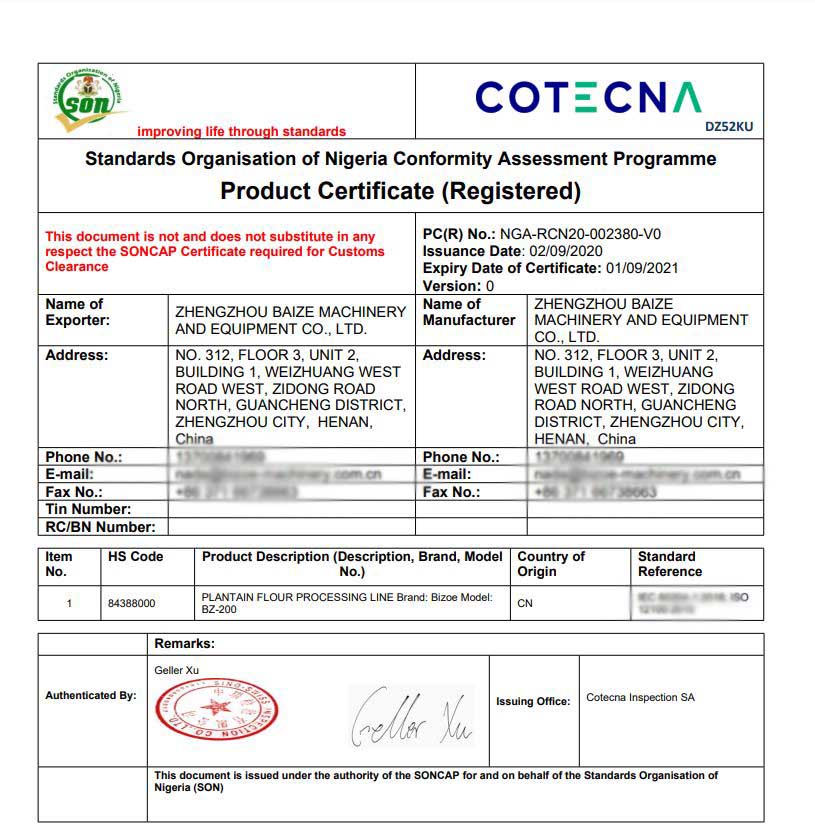

Certification
