6-20TPD Cassava Starch Processing Line

  • Raw material:Carbon Steel , Stainless Steel
  • Capacity:1T/D,5T/D,10T/D,20T/D ETC.
  • Usage:Cassava Starch Processing
  • Delivery time:30 DAYS
  • After-sales service:FREE INSTRUCTION

We're here to help: Easy ways to get the answers you need.

6-20TPD Cassava Starch Processing Line

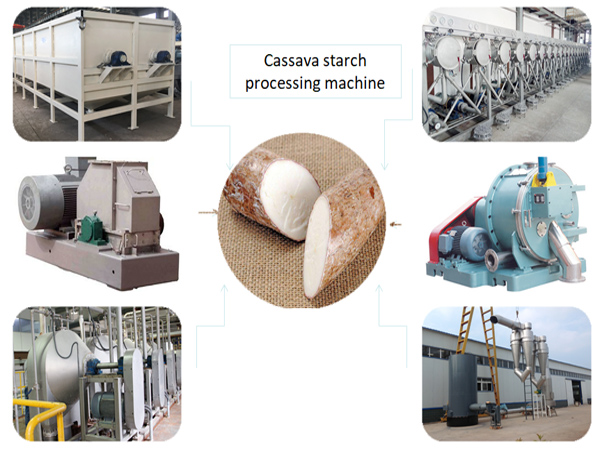

Cassava starch processing machine manufactured by Doing Company running successfully in domestic customer's factory which features with reasonable design and long service life, large handling capacity and high efficient, low power and water consumption, easy for installation and maintenance.


The working process of cassava starch processing plant

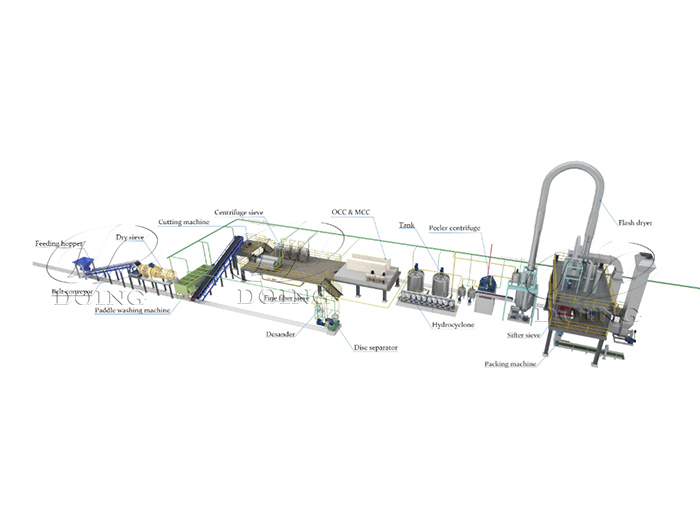

Put the raw material into the feeding hopper, and the raw material enters the dry sieve through the belt conveyor.Dry sieve is used to remove stones and weeds, soil, etc., and then put the raw materials into the paddle washing machine for cleaning.The cleaned raw materials shall be cut off by cutting machine, and then filed and broken in the rasper. After crushing, the raw material pulp enters the centrifugal sieve for screening (removing or separating the fibers), and then uses the fine fiber sieve to remove the fine fiber components in the coarse starch pulp.The raw material goes into the desander to remove the fine sand. Use a disc separator to separate protein and fat from raw materials.Disc separators and hydrocyclones are used in conjunction to remove fat, protein and cell fluid from starch pulp.The purified starch emulsion is dehydrated through a scraper centrifuge.The dehydrated wet starch enters the flash dryer to be dried, and then the starch sieve is used for screening treatment, and finally package the product.


Here are the detail introduction of cassava starch processing machine

1.Cassava cleaning  and washing machine

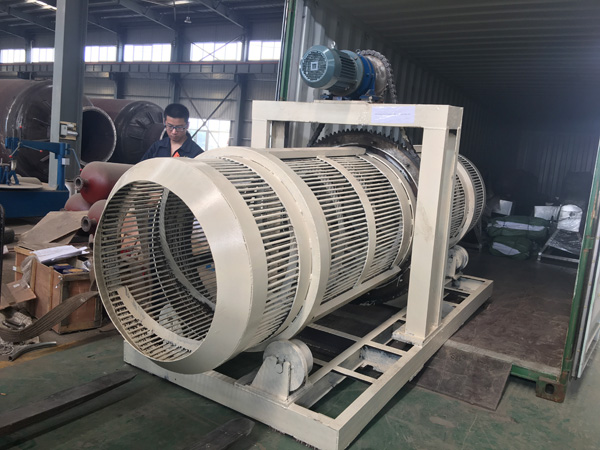

The fresh cassava is firstly delivered  to dry sieve so as to clean the sediments and foreign matters attached on cassava. This cassava starch processing machine features with large capacity and easy maintenance. Then through a paddle washing machine, material is further washed away the dirt, soil, sand and other impurities. Adopted with countercurrent method, this machine features with good washing effect and low material breaking rate.


2. Cassava crushing machine

Crushing machine serves to crush cassava into slurry so as to release starch from cell of cassava. The more starch obtained, the high starch yield. Therefore it need a high efficient cassava starch processing machine for crushing.  rapser introduce international technology which improve the cassava breaking rate to 95%.


3.Starch slurry separating machine

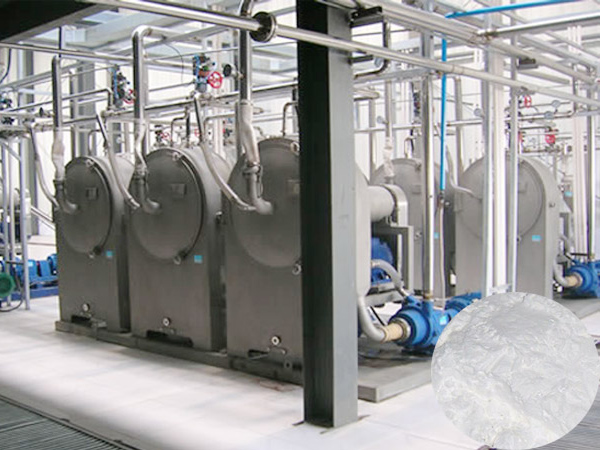

The crashed material is sent to centrifugal sieve through pump to extract starch and separate cassava residues. The whole stage adopts countercurrent washing to get the best results and saving water. And the automatic washing system is designed in front and back of this cassava starch processing machine to ensure good penetration of screen. Fine fiber sieve s also used for separating which has the features of high starch extraction rate and low power consumption.


4. Starch slurry refining hydrocyclone

 Starch slurry reaches starch hydrocyclone group to refine starch. Doing Company adopts18 stages hydrocyclone station for concentration, refining, washing and recovering cassava starch. This cassava starch processing machine is made from strengthened nylon which is sturdy and durable.

5. Cassava starch dehydration machine

Compared with other starch, peeler centrifuge is a cassava starch processing machine more suitable for cassava starch to. The siphon type peeler centrifuge can not only increase production capacity by 50% but also reduce moisture content to 36.5%.


6. Cassava starch drying machine

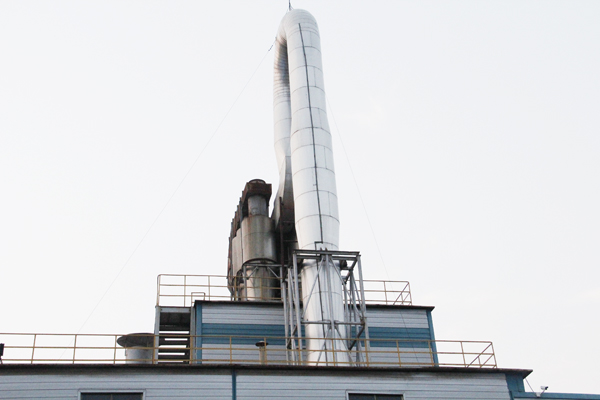

The cassava starch processing machine for drying is flash dryer. The technical parameters of this machine is controlled  through theoretical calculation, so that the starch quality can be guaranteed.  Besides, this flash dryer is made of stainless steel which can effectively high standards of the final starch.


7. Starch sieving and packing machine

Dried starch reaches sieving system. High efficiency cooling starch sifter is used to cool starch and get the best starch viscosity. And then sieved starch is packed by automatic packing machine for storage.


8. Automatic control system

Doing Company equips customers with automatic control system to control the whole set cassava starch processing machine. It consists of MCC operation cabinet, OCC control cabinet, LCB cabinet and matched CCTV monitoring system which can realize the control of the whole production line.
